Motion 5 - Contrast

background image

Contrast

Adjusts the difference between the lightest and darkest parts of an image.

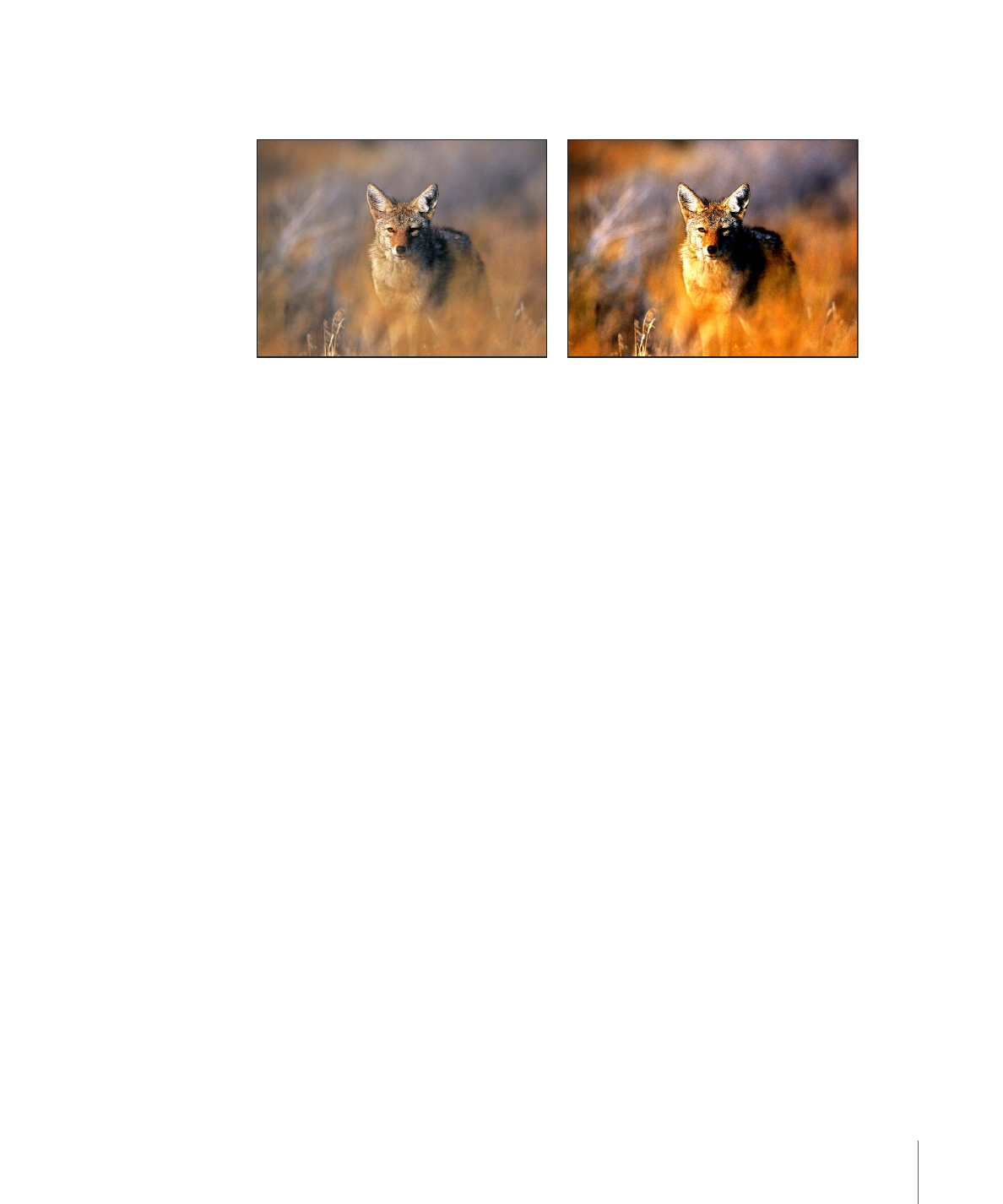

Original image

Contrast filter applied

Parameters in the Inspector

Contrast:

Sets the amount of contrast to be applied to the object.

Pivot:

Sets the point around which the contrast is adjusted. The point of contrast

adjustment is the level that is displayed if Contrast is set to 0.

Clip Color Values:

Turns clipping on and off. Clipping prevents color adjustments from

forcing color values out of the allowable digital range. Clipping can prevent illegal signal
levels in clips that are output to video. This pop-up menu has four options:

None: No clipping occurs.

At White: Any color channel exceeding the maximum value of 1 is clipped to 1.

At Black: Any color channel falling below the minimum value of 0 is clipped to 0.

At Black and White: All color channels are clipped to a minimum of 0 and a maximum

of 1.

Mix:

Sets the percentage of the original image to be blended with the color-corrected

image.

HUD Controls
The HUD contains the following controls: Contrast, Pivot, and Clip Color Values.
